Example Problem Solutions from:

Engineering Mechancis: Statics and Dynamics

by Anthony Bedford and Wallace Fowler
Fourth Edition, Pearson Prentice Hall, Upper Saddele River, NJ 2005

Authors' Homepages: Anthony Bedford Wallace Fowler

Chapter 10: Internal Forces and Moments

"We began our study of equilibrium by drawing free-body diagrams of individual objects to determine unknown forces and moments acting on them. In this chapter we carry this process one step further and draw free-body diagrams of parts of individual objects to determine internal forces and moments. In doing so, we arrive at the central concern of the structural design engineer: It is the forces which an object that determine whether it will support the external loads to which it is subjected."

Example Problem Solutions:

Directions:

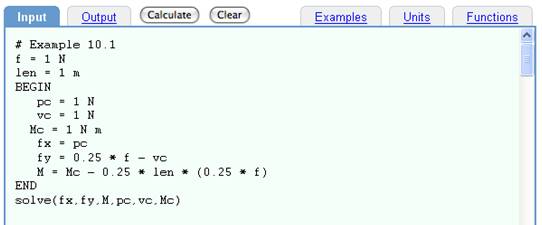

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

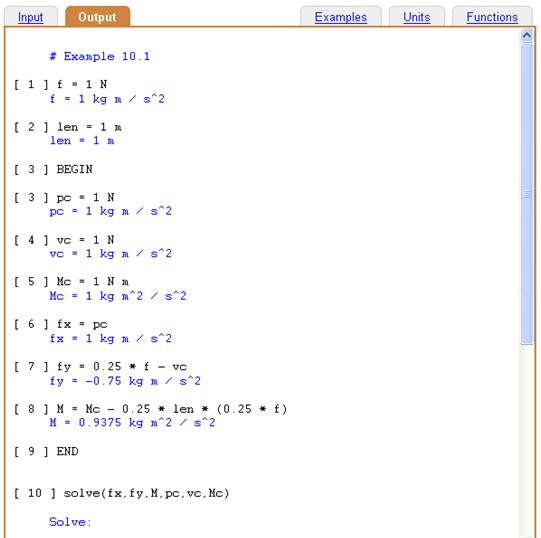

Results automatically appear under the OUTPUT tab.
