Example Problem Solutions from:

Engineering Mechanics: Statics & Dynamics

by R. C. Hibbeler
Tenth Edition, 4th Edition, Pearson Prentice Hall, Upper Saddle River, NJ 2004

Author's Homepage: R. C. Hibbeler

Chapter 11 Virtual Work

"Work of a Force. In mechanics a force F does work only when it undergoes a displacement in the direction of the force. For example, consider the force F in Fig. 11-1, which is located on the path s specified by the position vector r. If the force moves along the path to a new position rp = r + dr, the displacement is dr, and therefore the work dU is a scalar quantity defined by the dot produce du = dot(F, dr)."

Example Problem Solutions:

Directions:

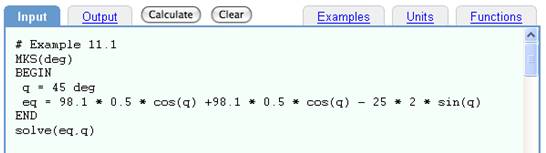

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

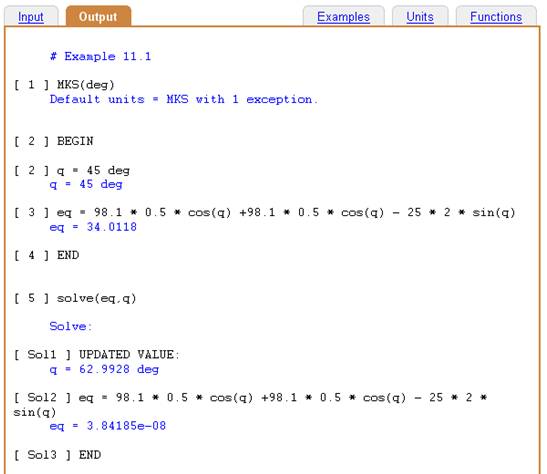

Results automatically appear under the OUTPUT tab.
