Example Problem Solutions from:

Engineering Mechanics: Statics & Dynamics

by R. C. Hibbeler
Tenth Edition, 4th Edition, Pearson Prentice Hall, Upper Saddle River, NJ 2004

Author's Homepage: R. C. Hibbeler

Chapter 14: Kinetics of a Particle: work and Energy

"In mechanics a force F does work on a particle only when the particles undergoes a displacement in the direction of the force. For example, consider the force F acting on the particle in Fig. 14-1. If the particle moves along the path s from position r to a new position rp the displacement is then dr � rp � r. The magnitude of dr is represented by ds, the differential segment along the path. If the angle between the tails of dr and F is q, Fig. 14-1, then the work dU which is done by F is a scalar quantity, defined by dU = F ds cosq. By definition of the dot produce (see Eq. C-14) this equation may also be written as dU = dot(F, dr)."

Example Problem Solutions:

Directions:

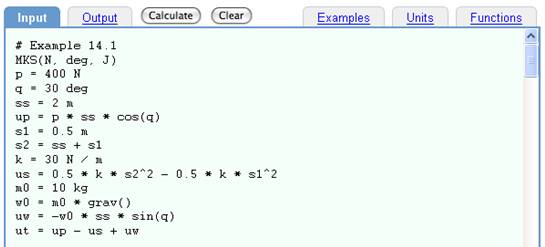

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

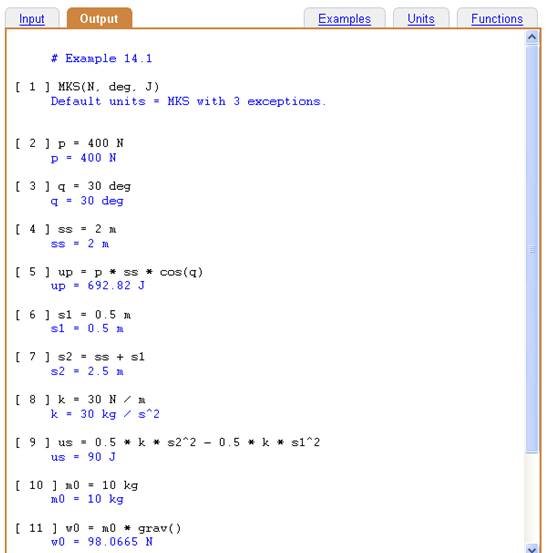

Results automatically appear under the OUTPUT tab.
