Example Problem Solutions from:

Engineering Mechanics: Statics & Dynamics

by R. C. Hibbeler
Tenth Edition, 4th Edition, Pearson Prentice Hall, Upper Saddle River, NJ 2004

Author's Homepage: R. C. Hibbeler

Chapter 4: Force System Resultants

"The moment of a force about a point or axis provides a measure of the tendency of the force to cause a body to rotate about the point or axis. For example, consider the horizontal force Fx, which acts perpendicular to the handle of the wrench and is located a distance dy from point O, Fig. 4-1a. It is seen that this force tense to cause the pipe to turn about the z axis. The larger the force or the distance dy, the great the turning effect. This tendency for rotation caused by Fx is sometimes call a torque, but most often it is called the moment of a force or simply the moment Moz. Note that the moment axis (z) is perpendicular to the shaded plan (x-y) which contains both Fx and dy and that this axis intersects the plane at point O."

Example Problem Solutions:

Directions:

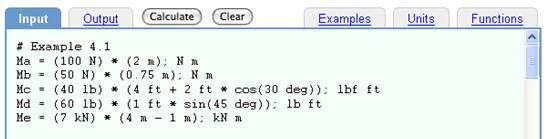

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

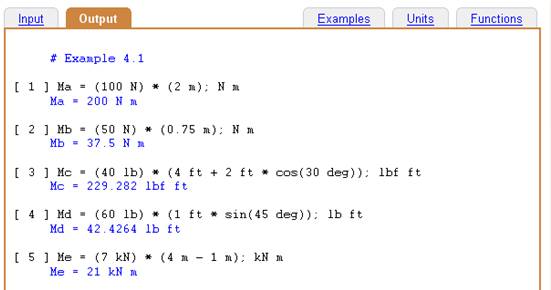

Results automatically appear under the OUTPUT tab.
