Example Problem Solutions from:

Engineering Mechanics: Statics & Dynamics

by R. C. Hibbeler
Tenth Edition, 4th Edition, Pearson Prentice Hall, Upper Saddle River, NJ 2004

Author's Homepage: R. C. Hibbeler

Chapter 6: Structural Analysis

"A truss is a structure composed of slender members joined together at their end points. The members commonly used in construction consist of wooden struts or metal bars. The joint connections are usually formed by bolting or welding the ends of the members to a common plate, called a gusset plate, as shown in Fig. 6-1a, or by simply passing a large bolt or pin through each of the members, Fig. 6-1b."

Example Problem Solutions:

Directions:

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

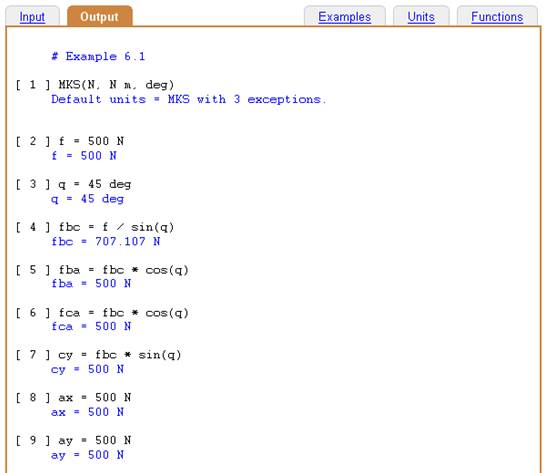

Results automatically appear under the OUTPUT tab.
