Example Problem Solutions from:

Engineering Mechanics: Statics & Dynamics

by R. C. Hibbeler
Tenth Edition, 4th Edition, Pearson Prentice Hall, Upper Saddle River, NJ 2004

Author's Homepage: R. C. Hibbeler

Chapter 9: Center of Gravity and Centroid

"Center of Gravity. The center of gravity G is a point which locates the resultant weight of a system of particles. To show how to determine this point consider the system of n particles fixed within a region of space as shown in Fig. 9-1a. The weights of the particles comprise a system of parallel forces which can be replaced by a single (equivalent) resultant weight having the defined point F of application. To find the xbar, ybar, zbar coordinates of G, we must use the principles outlined in Sec. 4.9."

Example Problem Solutions:

Directions:

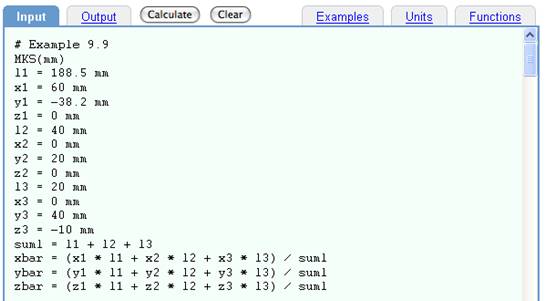

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

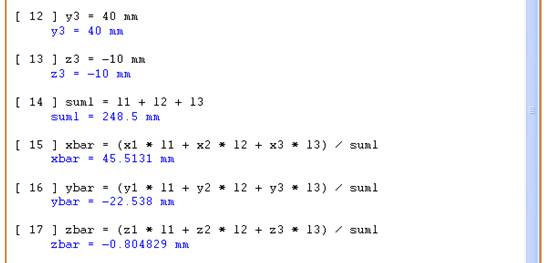

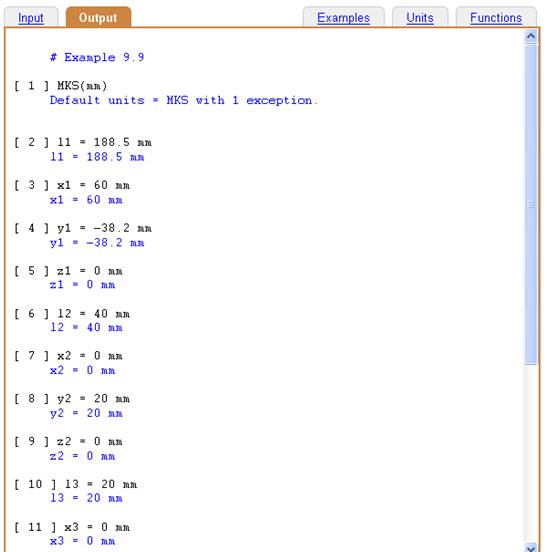

Results automatically appear under the OUTPUT tab.
