Example Problem Solutions from:

Fundamentals of Machine Component Design

by Robert C. Juvinall and Kurt M. Marshek
Fourth Edition, John Wiley & Sons, 2006

Author's Homepage: Kurt M. Marshek

Chapter 14: Rolling-Element Bearings

"As a background for introducing rolling-element bearings, a brief review of sliding bearings (Chapter 13) may be helpful. The simplest possible bearings are unlubricated plain or sliding bearings - like the wooden cart wheels mounted directly on wooden axles in ancient times. Lower friction and longer life were obtained by adding a lubricant, such as animal or vegetable oil. In modern machinery using sliding bearings, steel shafts are supported by the surfaces to bearings made of a wear-compatible material, such as bronzer or TFE (see Sections 9.9 and 9.10). Oil or grease is sued in common low-speed applications - -lawn mower wheels, garden carts, children's tricycles - but the lubricant does not completely separate the surfaces. On the other hand, sliding bearings used with engine crankshafts receive hydrodynamic lubrication during normal operation; that is, the oil film completely separates the surfaces."

Example Problem Solutions:

Directions:

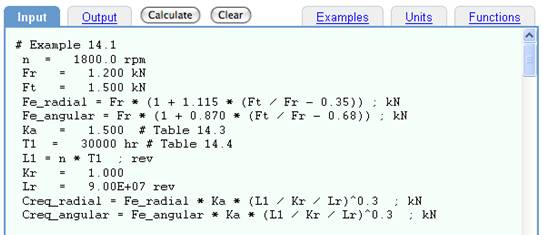

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

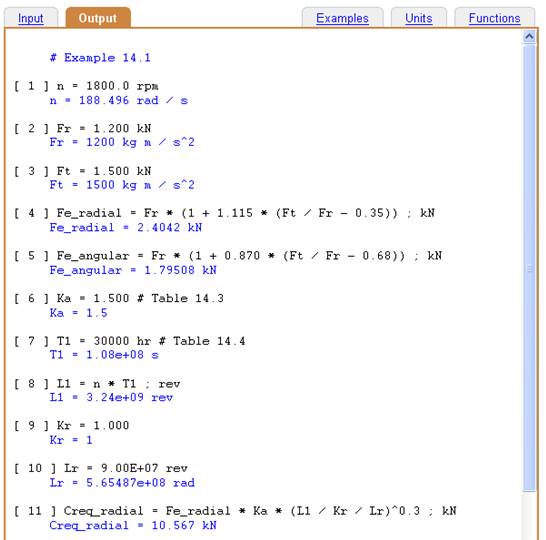

Results automatically appear under the OUTPUT tab.
