Example Problem Solutions from:

Fundamentals of Machine Component Design

by Robert C. Juvinall and Kurt M. Marshek
Fourth Edition, John Wiley & Sons, 2006

Author's Homepage: Kurt M. Marshek

Chapter 15: Spur Gears

"Gears, defined as toothed members transmitting rotary motion from one shaft to another, are among the oldest devices and inventions of man. In about 2600 B.C. the Chinese are known to have used a chariot incorporating a complex series of gears like those illustrated in Figure 15.1. Aristotle, in the fourth century B.C., wrote of gears as though they were common place. In the fifteenth century A.D., Leonardo da Vinci designed a multitude of devices incorporating many kinds of gears."

Example Problem Solutions:

Directions:

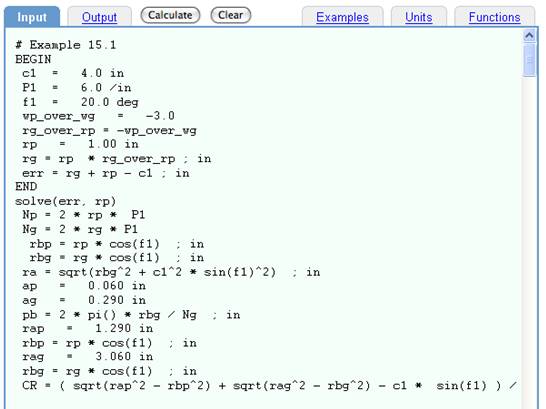

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

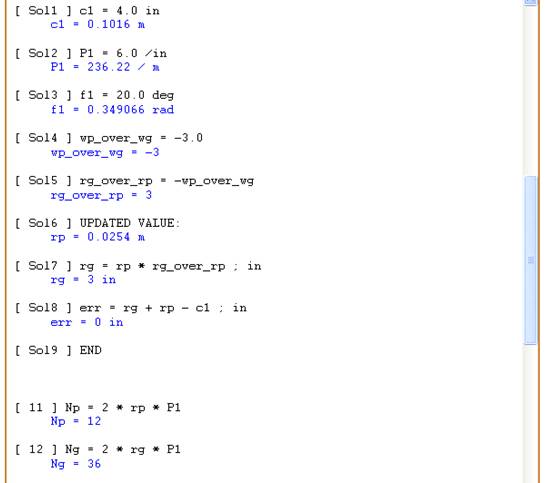

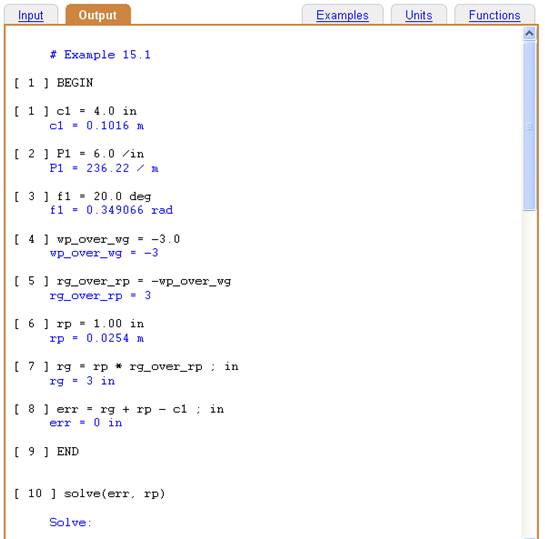

Results automatically appear under the OUTPUT tab.
