Example Problem Solutions from:

Fundamentals of Machine Component Design

by Robert C. Juvinall and Kurt M. Marshek
Fourth Edition, John Wiley & Sons, 2006

Author's Homepage: Kurt M. Marshek

Chapter 17: Shafts and Associated Parts

"The term shaft usually refers to a relatively long member of round cross section that rotates and transmits power. One or more members such as gears, sprockets, pulleys, and cans are usually attached to the shaft by means of pins, keys, splines, snap rings, and other devices. These latter members are among the associated parts considered in this chapter, as are couplings and universal joints, which sere to connect the shaft to its source of power or load."

Example Problem Solutions:

Directions:

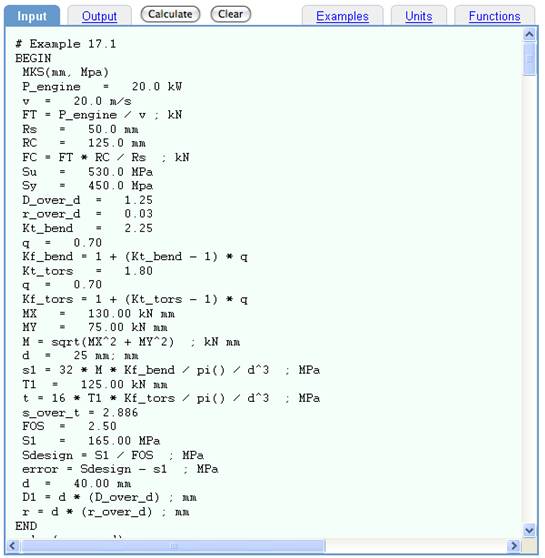

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

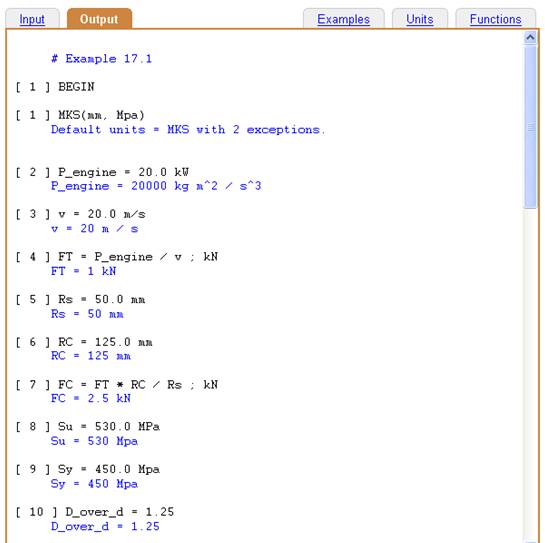

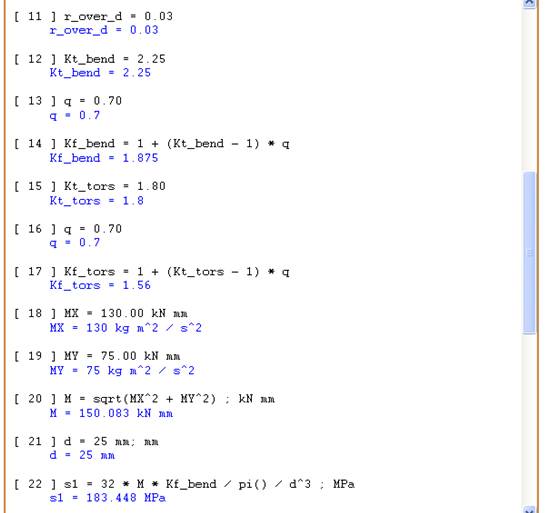

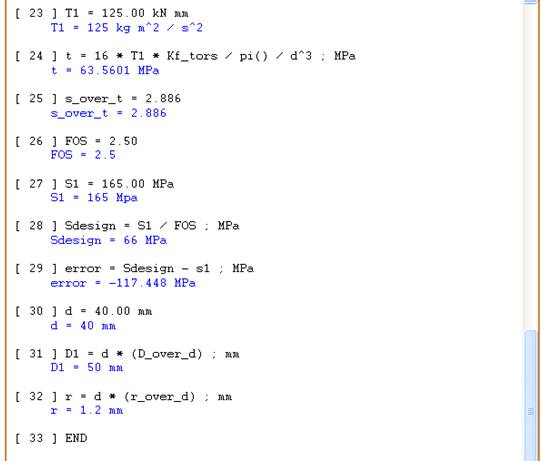

Results automatically appear under the OUTPUT tab.
