Example Problem Solutions from:

Fundamentals of Machine Component Design

by Robert C. Juvinall and Kurt M. Marshek
Fourth Edition, John Wiley & Sons, 2006

Author's Homepage: Kurt M. Marshek

Chapter 19: Miscellaneous Machine Components

"Power transmission between shafts can be accomplished in a variety of ways. In addition to gears (Chapters 15 and 16), flexible elements such as belts and chains are in common use. These permit power to be transmitted between shafts that are separated by a considerable distance, thus providing the engineer with greater flexibility in the relative placement of driving and driven machinery."

Example Problem Solutions:

Directions:

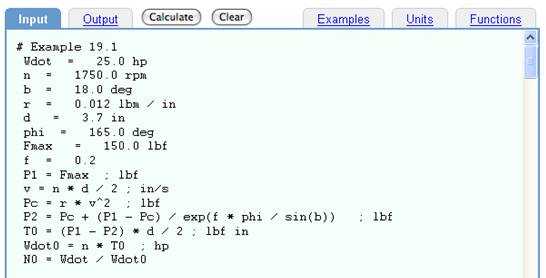

Copy and paste any example from the window at right into the
INPUT tab located on the DimensionEngine homepage.
Submit with or by typing Shift Enter.

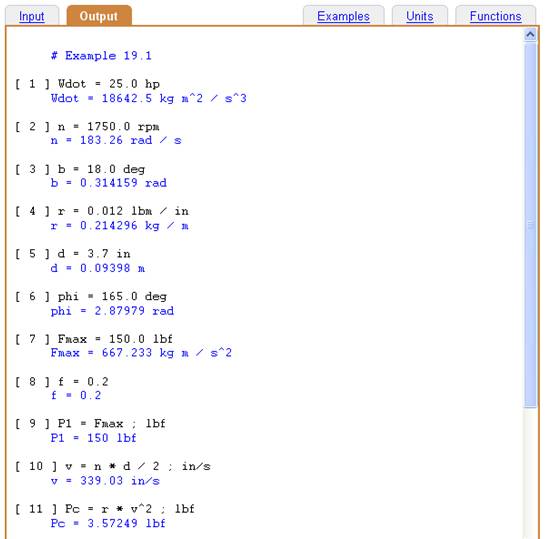

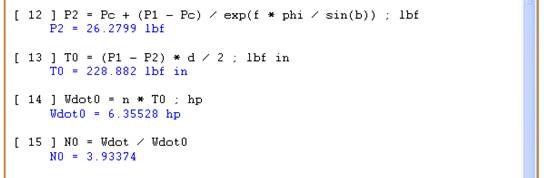

Results automatically appear under the OUTPUT tab.
