Example Problem Solutions from:


Fundamentals of Machine Component Design

by Robert C. Juvinall and Kurt M. Marshek
Fourth Edition, John Wiley & Sons, 2006

Author's Homepage:   Kurt M. Marshek


Chapter 7: Impact


"The previous chapters have dealt almost exclusively with static loading. We turn now to the more commonly encountered case of dynamic loading. Dynamic loading includes both impact, the subject of this chapter, and fatigue, which will be introduced in Chapter 8."

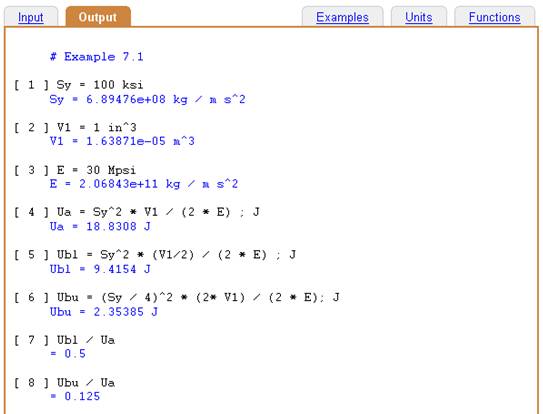

Example Problem Solutions:


Directions:

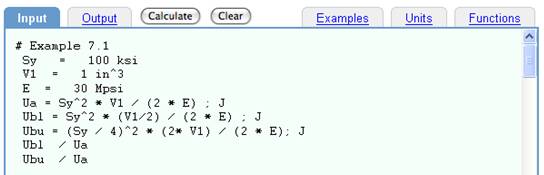

  • Copy and paste any example from the window at right into the
    INPUT tab located on the DimensionEngine homepage.


  • Submit with or by typing Shift Enter.
  • Results automatically appear under the OUTPUT tab.
